Gedore 2 Metric Double End Offset Ring Spanner Wrench 22x24mm

Description

• Acc. to DIN 838, ISO 3318, ISO 1085, ISO 10104
• GEDORE vanadium steel 31CrV3, chrome-plated
• Satin non-glare finish
• Carefully forged and professionally machined:
• Ring: thin-walled, 5° deep offset from shaft, with UD profile for gentle transmission of force
• High bending strength – does not fracture or splinter when overloaded, thus minimising the risk of injury
• Overloading indicated by deformation
• For extremely deep or inset bolts
• Top-grade industrial quality for the hardest of continuous use

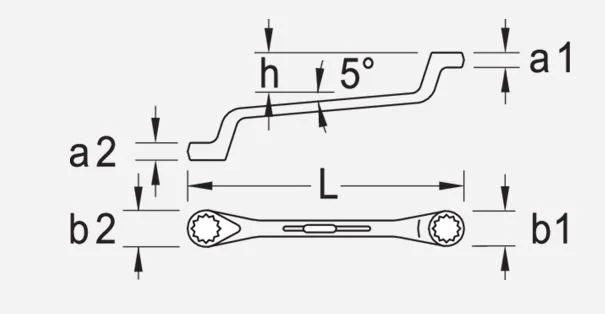

• Length – 307mm
• A1 – 14.3mm
• A2 – 14.4mm
• B1 – 32.8mm
• B2 – 35.7mm
• H – 33mm
• Weight – 0.412kg
